Dimensions
- dimensions: 4935*1915*1510
- Wheelbase: 2915
- Wheels: 235/50 R18
- Weight (Curb Mass): 1730

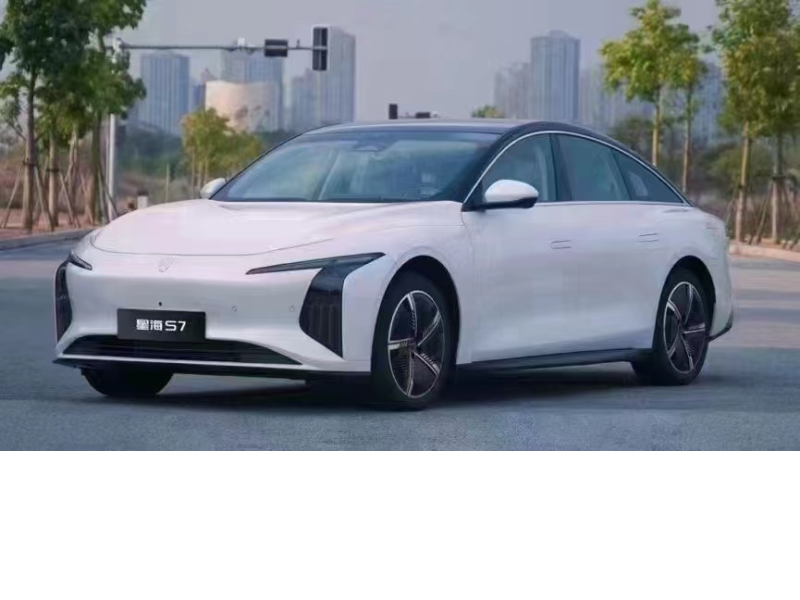

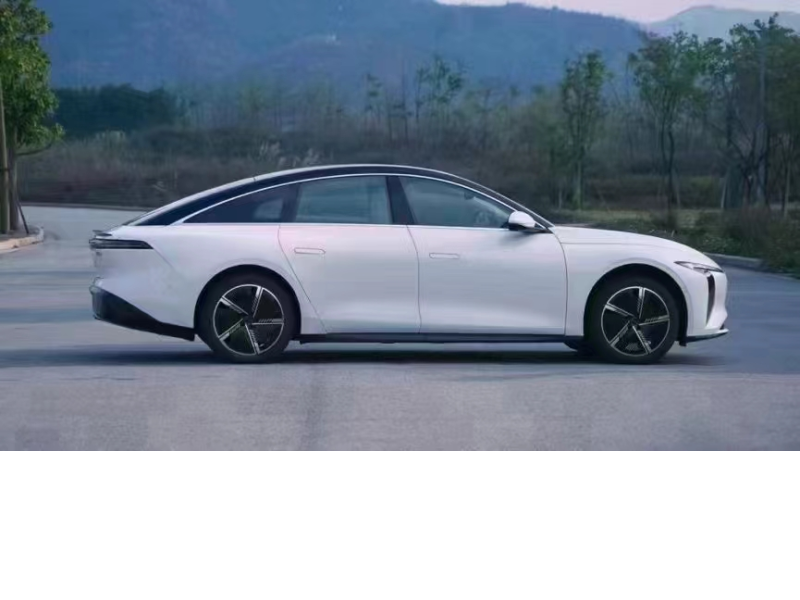

JF-S7 Large And Medium-Sized New Energy Sedan Sloping Coupe
Sloping Coupe:Ultra-Low Drag,Balanced Dynamics:Practical Space
Starting at: $
| 电动机 MOTOR | 驱动形式 | Driven type |
后置后驱 RR |
后置后驱 RR |
||
| 电动机类型 | Type of motor |
永磁同步电机 Permanent magnet synchronous motor |
永磁同步电机 Permanent magnet synchronous motor |
|||
| 冷却型式 | Cooling type | 液冷 Liquid | 液冷 Liquid | |||
| 峰值功率(kW) | peak power (kW) | 160 | 160 | |||
| 额定功率(kW) | power rating (kW) | 56 | 56 | |||
| 电机最高转速(rpm) | Maximum motor speed (rpm) | 16000 | 16000 | |||
| 峰值扭矩(N.m) | Peak Torque (N.m) | 310 | 310 | |||
| 主减速比 | Main deceleration ratio | 12.293 | 12.293 | |||
| 制动能量回收系统 | Brake energy recovery system | ● | ● | |||
| 多级能量回收系统 | Multistage energy recovery system | ● | ● | |||
|
电池 BATTERY |
动力电池材料 | Power battery materials | 磷酸铁锂 LFP | 磷酸铁锂 LFP | ||
| 冷却型式 | Cooling type | 液冷 Liquid | 液冷 Liquid | |||
| 电池加热装置 | Battery heating device | ● | ● | |||
| 电池容量(kwh) | Battery capacity (kwh) | 56.8 | 56.8 | |||
|
充放电 CHARGING |
车载充电器功率 | Car-charger power | 6.6KW | 6.6KW | ||
| 慢充充电接口(交流) | Slow charging interface (AC) | ● | ● | |||
| 快充充电接口(直流) | Fast charging interface (DC) |
●国标 Chinese standard |
●国标 Chinese standard |
|||
| 充电接口照明灯 | Charging interface lighting lamp | × | × | |||
| 充电接口带锁 | Charging interface with lock |
●国标 Chinese standard |
●国标 Chinese standard |
|||
| 预约充电功能 | Allocate the charging function | ● | ● | |||
| 慢充充电时间(仪表电量从0%~100%) | Slow charging time (instrument power range from 0% to 100%) |
6.6kW充电桩约9小时(常温RT) 6.6kW charging pile approx. 9 hours (room temperature) |
6.6kW充电桩约9小时(常温RT) 6.6kW charging pile approx. 9 hours (room temperature) |
|||
| 快充充电时间(SOC 30%~80%) | Fast-charging time (SOC 30%~80%) |
常温25℃:120kW充电桩28min Room temperature 25℃ : 120kW charging pile-28min |
常温25℃:120kW充电桩28min Room temperature 25℃ : 120kW charging pile-28min |
|||
| 放电功能 | Discharge function | 3.3KW | ● | ● | ||
|
变速箱 TRANSMISSION |
变速器类型 | Transmission type |
单速固定速比 Single speed fixed speed ratio |
单速固定速比 Single speed fixed speed ratio |
||
| 档位个数 | Number of gear | 怀挡 | paddle shift | P/R/N/D | P/R/N/D | |
|
车身 VEHICLE BODY |
车身结构 | bodywork | 承载式车身,三厢车 | frameless body saloon | ● | ● |
| 车门数(个) | Number of doors (one) | 4 | ● | ● | ||
| 座位数(个) | Number of seats (individual) | 5 | ● | ● | ||
|
底盘 CHASISS |
前悬挂类型 | Front suspension type | 麦弗逊式独立悬挂+横向稳定杆 | McPherson type independent suspension + lateral stabilizer bar | ● | ● |
| 后悬挂类型 | Rear suspension type | 多连杆式独立悬挂 | Multi-link-type independent suspension | ● | ● | |
| 空气悬挂 | air suspension | × | × | |||
| 可调悬挂 | Adjustable suspension | × | × | |||
| 转向传动装置 | steering transmission linkage | 电动转向,运动模式转向变沉 | Electric steering, motion mode steering changes to heavy | ● | ● | |
| 前轮制动器 | Front wheel brake | 通风盘式 | Ventilation disc | ● | ● | |
| 后轮制动器 | rear wheel brake | 盘式 | disk | ● | ● | |
| 驻车制动类型 | Parking brake type | EPB | EPB | ● | ● | |
| 轮胎规格 | tyre size | 235/50R18(带 E-mark) | 235 / 50R18 (with E-mark) | ● | × | |
| 235/45R19(带 E-mark) | 235 / 45R19 (with E-mark) | × | ● | |||
| 备胎 | Spare tire | × | × | |||
| 快速补胎工具 | Quick tire replacement tools | ● | ● |
