Dimensions
- dimensions: 6375*2100*2880
- Wheelbase: 4350
- Wheels:
- Weight (Curb Mass): 4260
Technology
Technological innovation and business model innovation are the core research institutes
JF-JF-YZ6603BEV
21 seater pure electric right-hand drive passenger car
21 seater pure electric right-hand drive passenger car
Colores
JF-JF-YZ6603BEV
JF-JF-YZ6603BEV Specs
Starting at: $
Drive
- Energy: Battery electric new energy vehicle
- Range: 280
- Drive:
- Transmission:
Power
- Battery type:
- Battery Factory:
- Charging:
- Battery capacity:

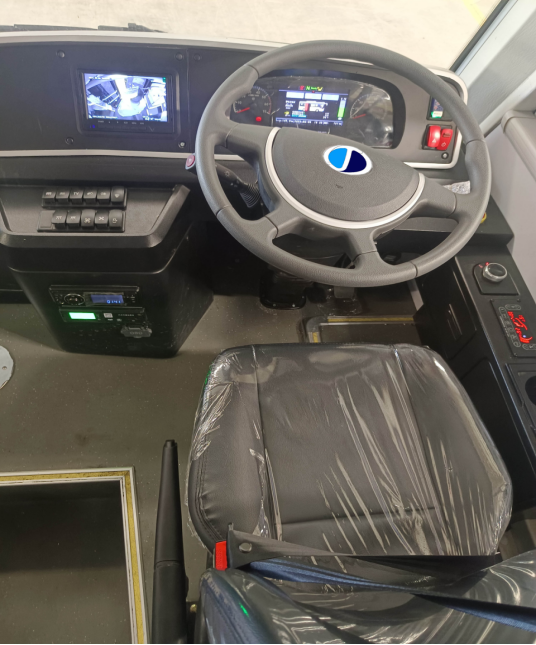

Cockpit
- Seat: 21
- Displays:
- luggage volume:
- Airbag: Before
Performance
- High Speed: 69
- Acceleration: 0
- Intelligent assisted driving:
- Air conditioning: have
Warranty
- Basic Vehicle:
JF-JF-YZ6603BEV
| Type | JF-YZ6603BEV | |
| Driving mode | RHD | |
| Parameters | Value | Configuration and standard specifications |
| （mm）Length | 6375 |
Compliant with the standards of "MC-2022-027" and "LTFRB MC-2021-002"; short front and rear overhang design to increase passenger space |
| （mm）Width | 2100 | / |
| （mm）Height | 2880 | / |
| （mm）Wheelbase | 4350 | / |
|
（mm） Front/Rear overhang |
1145880 | / |
|
（°） Angle of approach/Departure |
20/27 | / |
|
（Kg） Curb weight |
4260 | / |
|
（Kg） Maximum total mass |
6300 | / |
|
（Kg） Axle load (kg) |
2800/3500 | / |
|
Maximum passengers |
30/10-20 |

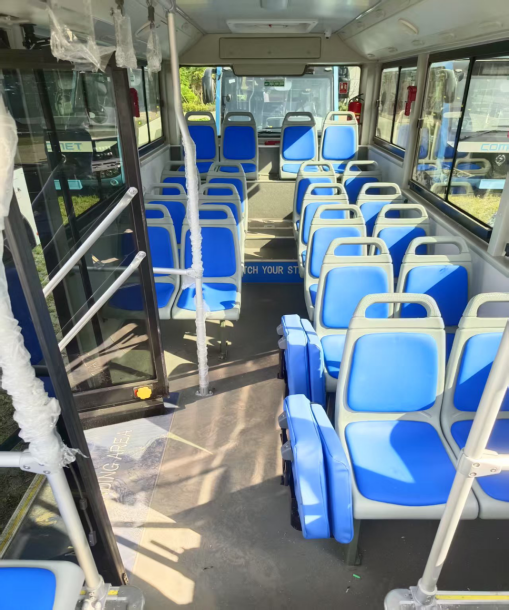

The seat layout is 20 + 1 |
|
Maximum speed |
69 | / |
|
Maximum gradability |
15% | / |
|
Minimum turning radius |
15 | / |
|
Cruise mileage (km) |
280 | / |
|
Air Conditioning Configuration |
/ |
Equipped with shared roof-mounted air conditioning. |
|

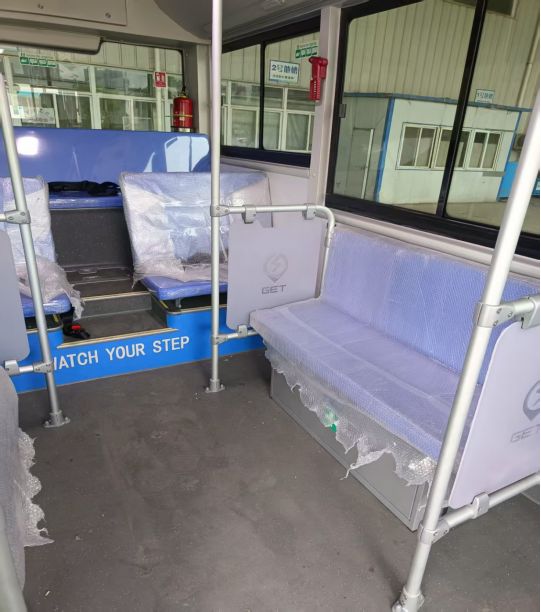

Accessibility Design |
/ |
Equipped with steps for persons with disabilities and a designated wheelchair area. |
|
Data Monitoring |
/ |
Includes a rear-end data monitoring terminal. |
|
Drive Mode |
/ |
Rear-wheel drive with integrated axle. |
|
Advertising Equipment |
/ |
Equipped with 2 TV screens for video advertising. |
|
Display Equipment |
/ |
Front and rear electronic display boards; LED signage dimensions include 1019×989mm, etc. |
|
Network & Charging |
/ |
Whole vehicle WiFi and USB charging ports. |
|
Interior Configuration |
/ |
ddition of hanging straps and warning signages; acrylic dividers at the rear; lockable luggage compartment under the seat (dimensions: 900×450×340mm). |
|
AFCS (Automatic Fare Collection System) System |
/ |
The tablet features a 10.1-inch IPS screen with 1280×800 resolution, equipped with Rockchip RK3568 processor, etc. |
|
Glass Parameters |
/ |
The light transmittance of the driver's left/right side and front windshield is >70%, and the remaining glass is 18%. |
|
Safety Configuration |
/ |
The side cabin door, charging port, and toolbox adopt four-corner square locks; fire extinguisher is installed in the vehicle. |
|
Plate Number Dimensions |
/ |
Front plate number: 381mm×127mm; rear plate number housing with LED lights. |
| Vehicle design | Dongfeng Motor Corporation | |
| OEM customization | Wuhan Junfeng Automobile Co., Ltd. | |
