JF-F10

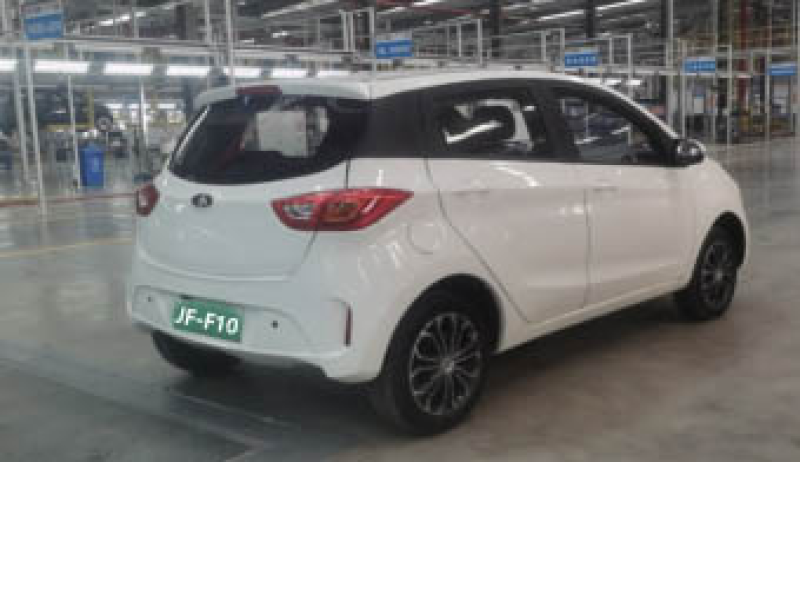

JF-F10 RHD Compact SUV

Colores

JF-F10

JF-F10 Specs

Starting at: $

Dimensions

  • dimensions: 3780*1650*1530
  • Wheelbase: 2410
  • Wheels:
  • Weight (Curb Mass): 1130

Drive

  • Energy: Pure electric small SUV
  • Range:
  • Drive: FWD
  • Transmission: Electric vehicle single speed gearbox

Power

  • Battery type: Lithium iron phosphate battery
  • Battery Factory: DongFeng
  • Charging: 30min(Fast)/6h(slow)
  • Battery capacity: 31

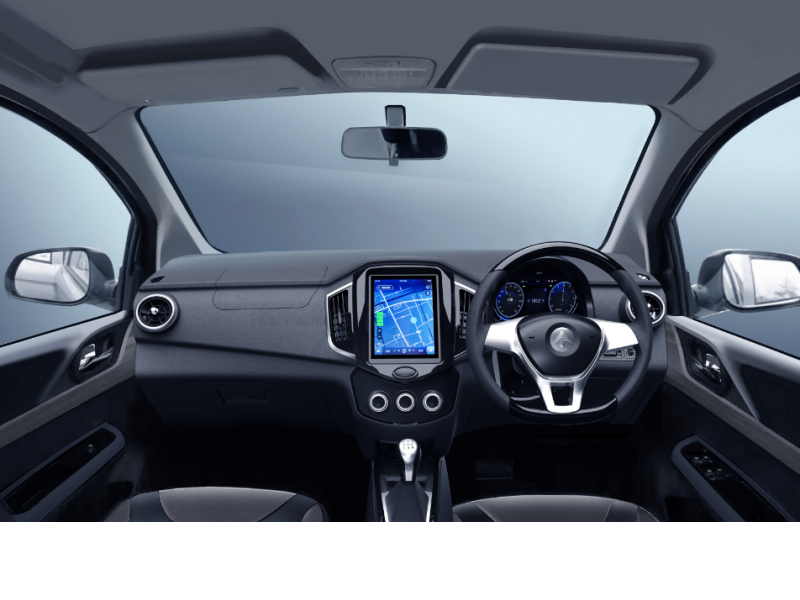

Cockpit

  • Seat: 5
  • Displays:
  • luggage volume:
  • Airbag:

Performance

  • High Speed: 100
  • Acceleration: 0
  • Intelligent assisted driving:
  • Air conditioning: AC


JF-F10

Vehicle Model车型 JF-F10 EV
F10电车
Steering System转向系统 left左/Right右舵
Dimensions&Specifications尺寸参数
Overall dimensions(mm)长宽高 3780*1650*1530
Wheelbase(mm)轴距 2410
Tread/Front/Rear(mm)轮距/前后 1415/1417
前悬/后悬(mm) 790/580
接近角(°) 16°/15°(空载/满载)(Empty/Full Load)
离去角(°) 27°/25°(空载/满载)(Empty/Full Load)
Maximum gradient最大爬坡度 ≤20%
Rated load mass(kg)额定载质量 350
Min.ground clearance(mm)最小离地间隙 150
Minimum turning diameter 最小转弯直径(m) 10
Rated Passengers乘员数 5
Curb Weight(Kg)整备质量 1130
Power动力总成
Position of Engine电机位置 Front前置
 Motor type电机类型  永磁同步电机(水冷)Permanent magnet synchronous motor (water-cooled)
Motor/motor controller model
电机/电机控制器型号
TZ180XS22H-320/MC3903-W
Rated Power额定功率 22KW
驱动电机净重量Net weight of drive motor 33kg
Rated rotation rate额定转速 5500r/min
最大/持续功率Maximum/continuous power 45/22
Max.Torque最大扭矩 160/70
Max.speed(Km/h)最高车速 100Km/h
Range (km)续航里程(Km) 300
Charger power充电机功率 3.3
DC pile charging time
直流桩充电时间(SOC:20~80%)
0.5h
Charging time of communication charging station
交流充电桩充电时间
6-8h
Home charging time
家用充电时间
8-9h
Battery type (cooling method)
电池类型(冷却方式)
磷酸铁锂动力电池总成(自然冷却)Lithium iron phosphate power battery assembly (naturally cooled)
Maximum peak/continuous (room temperature) output power
最大峰值/连续(室温)输出功率
67/26
Net weight of power battery
动力电池净重量
205kg
system voltage 系统电压 320V
Total battery energy电池总能量 31
Steering System转向系统 Gear rack electric booster齿轮齿条电动助力式
Brake System驻车系统 Manual mechanical parking brake手动机械驻车制动
Suspension System悬挂系统 Front:MC Pherson Independent Suspension前麦弗逊独立悬架
Rear:Semi drag rocker arm Independent suspension+Coil Spring
后纵向拖曳臂式半独立悬架+螺旋弹簧
Drive/Brake methods制动/驱动方式
Brake system(Front/Rear) 制动系统(前/后)                           Front disc/rear drum  The brake booster
前碟后鼓 刹车助力
Drive Method驱动方式 Front Drive前轮驱动
