Dimensions
- dimensions: 5980*2490*2470
- Wheelbase: 3700
- Wheels: 365/80R20
- Weight (Curb Mass): 7700

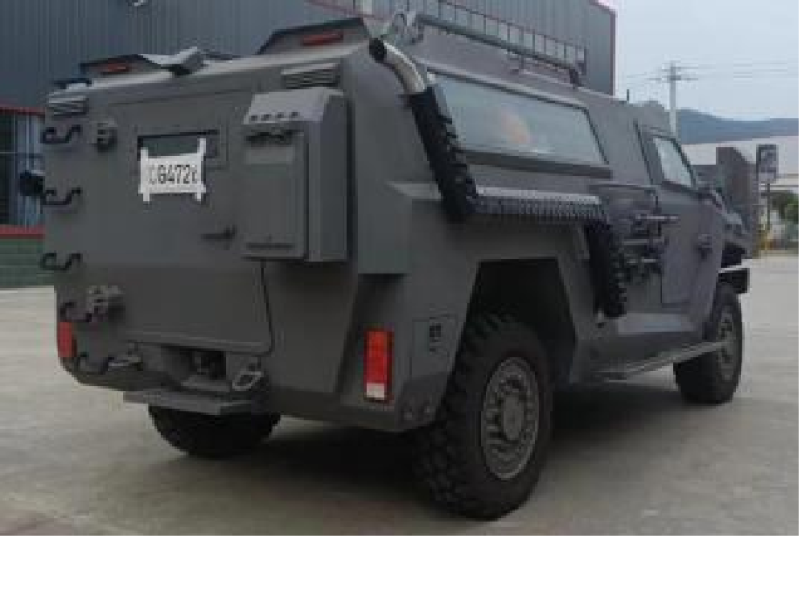

JF-KJ2110MCT Off Road Vehicle Specialized Vehicle
Starting at: $
项目 Items | 参数性能 Parameters | 备注 Note | |||
KJ2110MCT | KJ2140MCT | ||||
基本要求 Basic Requirements |
尺寸参数 | 车长 length | 5980 | 5980 | |
车宽 width | 2490 | 2490 | |||
车高 height | 2470 | 2600 | |||
轴距 wheelbase | 3700 | 3700 | |||
轮距 track | 2040/2040 | 2060/2060 | |||
质量参数 |
最大总质量 Maximum total mass |
10000 | 14000 | ||
装载质量 Loading mass |
2300 | 5500 | |||
整备质量 curb weight |
7700 | 8500 | |||
牵引质量 Traction mass |
2000 | 5000 | |||
乘载员(人)Passenger (person) | 2~10 | 2~10 | |||
驱动型式 Driving Type | 4×4 | 4X4 | |||
防护级别 Protection level |
基础防护型:车身四周为4mm防弹钢,底部和顶为 4mm防弹钢板 Basic protection type: The body is surrounded by 4mm bulletproof steel, and the bottom and top are made of 4mm bulletproof steel plates |
车身表面选装披挂8mm Optional 8mm canopy on the body surface |
|||
中型防护型: 车身四周为8mm防弹钢,底部和顶为 8mm防弹钢板 Medium protective type: 8mm bulletproof steel around the body, 8mm bulletproof steel plates at the bottom and top |
|||||
加强防护型: 车身四周为10mm防弹钢,底部和顶为 10mm防弹钢板 Enhanced protection type: 10mm bulletproof steel around the body, 10mm bulletproof steel plates at the bottom and top |
项目 Items | 参数性能 Parameters | 备注 Note | ||
KJ2110MCT | KJ2140MCT | |||
基本要求 Basic Requirements |
最高车速(km/h) Maximum speed (km/h) |
≥120 | ≥120 | |
最大行驶里程(km/h) Maximum driving range (km) |
≥700 | ≥600 | ||
0 ~60千米/小时加速时间(S) 0-60 km/h acceleration time (s) |
≤15 | ≤17 | ||
最大爬坡度(%) Maximum climbing gradient (%) |
≥60% | ≥60% | ||
驻车坡度(%) Parking gradient (%) |
≥40% | ≥40% | ||
最小转弯直径( m) Minimum turning diameter (m) |
≤16.5 | ≤18.5 | ||
最小离地间隙( mm) Minimum ground clearance (mm) |
400 | 380 | ||
垂直越障高度( mm) Vertical obstacle surmounting height (mm) |
450 | 450 | ||
水平越壕宽度( mm) Horizontal trench crossing width (mm) |
700 | 700 | ||
涉水深度( mm) Wading depth (mm) |
1200 | 1200 | ||
接近角/离去角(0) Approach angle / Departure angle (°) |
44/38 | 40/35 | ||
纵向通过角(0) Longitudinal passing angle (°) |
24 | 22 |
