JF-ZIN (Courage)

Economical and ultra long range SUV

Long battery life
VOYAH series products
High degree of intelligence
The interior space of the vehicle is large

Colores

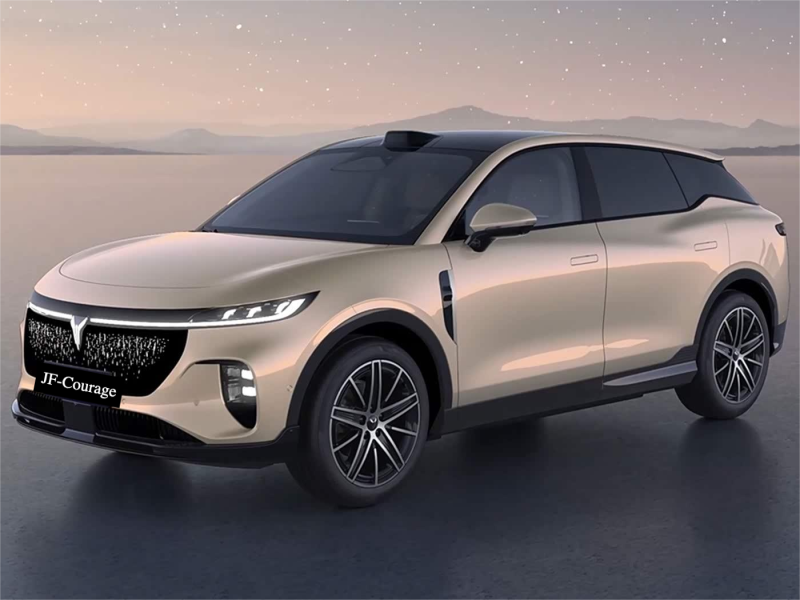

JF-ZIN (Courage)

VOYAH series products:Long battery life,The interior space of the vehicle is large:High degree of intelligence

JF-ZIN (Courage) Specs

Starting at: $ 0

Dimensions

  • dimensions: 4725*1900*1636
  • Wheelbase: 2900
  • Wheels: 20
  • Weight (Curb Mass): 2099

Drive

  • Energy: Battery electric new energy vehicle
  • Range: 625
  • Drive:
  • Transmission: Electric vehicle single speed gearbox

Power

  • Battery type: Lithium iron phosphate battery
  • Battery Factory: DongFeng
  • Charging: 28min(fast)/6h(slow)
  • Battery capacity: 77

Cockpit

  • Seat: 5
  • Displays: overlength
  • luggage volume:
  • Airbag: OK

Performance

  • High Speed: 204
  • Acceleration: 5
  • Intelligent assisted driving: ok
  • Air conditioning: 0

Warranty

  • Basic Vehicle: Three years or 120000 kilometers


JF-ZIN (Courage)

level Mid size SUV
Energy type Pure electric
Maximum power (kW 215
Body structure 5-door 5-seater SUV
Maximum speed (km/h)  204
Curb weight (kg)  2099
Maximum Full Load Mass (kg)  2474
body
Length (mm)  4725
Width (mm)  1900
Height (mm)  1636
Wheelbase (mm)  2900
Front wheelbase (mm  1625
Rear wheelbase (mm) 1630
Approach angle (°) 19
Departure angle (°) 23
Body structure SUV
Door opening method Swing door
Number of car doors ●5
Seating capacity (number) ●5
motor
Rear motor brand
Zhixin Technology
Rear motor model TZ220XSP02
Motor type
 Permanent magnet/synchronous
Total power of electric motor (kW) 215
Total horsepower of electric motor (Ps) 292
Maximum power of rear motor (kW)   215
Number of driving motors   Single motor
Motor layout   Posterior
Battery type
● Lithium iron phosphate battery
Estimated Battery capacity(kwh)   77
Estimated range   625
Battery brand
Sichuan Contemporary Amperex Technology Limited/Dongyu Xinsheng
Battery cooling method    Liquid cooling
Fast charging function    support
Transmission
for short
Electric vehicle single speed gearbox
Number of gears 1
Transmission type  Fixed gear ratio gearbox
Chassis steering
Assistance type ●Electric power assistance
Vehicle structure Load bearing type
Wheel braking
Front brake type   ●Ventilation disc type
Rear brake type   ● Disc type
Parking brake type   ● Electronic parking
Front tire specifications   ●255/45 R20
Rear tire specifications   ●255/45 R20
  JUNFENG ZIN is a mid size pure electric SUV with a maximum pure electric range of 901km, available in two wheel drive and four-wheel drive options.


Three finger flying screen
      This 15.05-inch central control screen can slide left and right. How to move? Touch the screen with three fingers and swipe horizontally to make it move left and right. The farthest it can move to the right is directly in front of the passenger seat. Of course, in addition to the three finger flying screen, its movement can also be controlled through voice and touch screen buttons.



Power BEV is equipped with a new generation Amber 2.0 battery system, which uses the industry's highest energy density battery pack and has better energy consumption performance. It has the technical characteristics of long range, high safety, and more durability.
