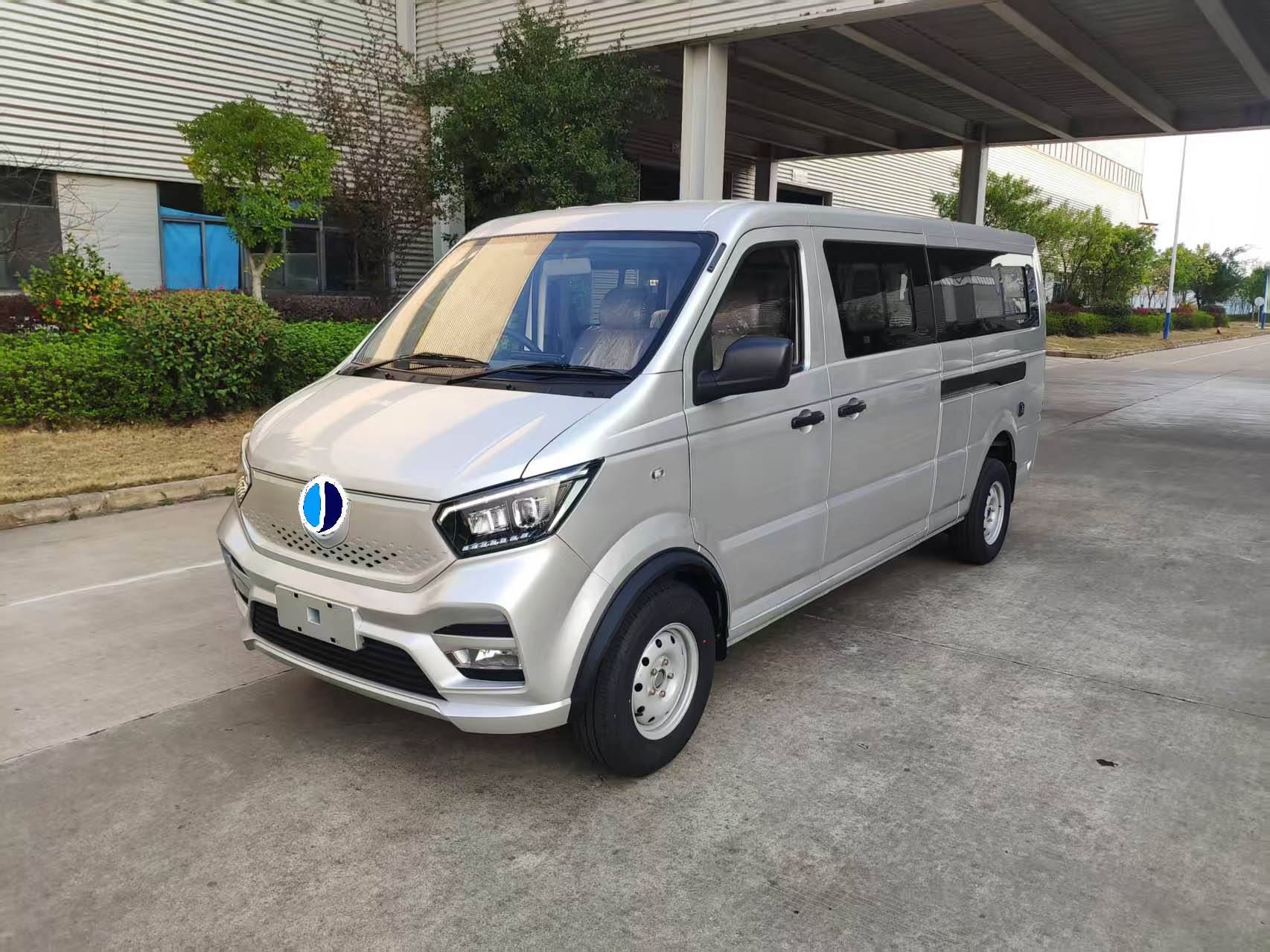

JF-A09
Price:Contact Us cc_junfeng@163.com
| Brand | Dong Feng |
| Classification | Battery electric new energy vehicle |
| Body dimension (mm) | 5265*1715*2065 |
| Wheelbase (mm) | 3450 |
| Body structure | steel structure |
| Mileage (km) | ≥260 |
| Type of battery | Lithium iron phosphate battery |
| Motor Power(KW) | 0 |
| Battery Capacity(KWh) | 54 |
| Charging period | 慢充≤12（SOC：20-100%） 快充≤1（SOC：20~80%） |
| Highest Driving Speed | 90 |
| Acceleration Time(s) | 0 |
| Driving motor locatio | Front+Rear |
| Volume of trunk | |
| Type of transmission | |
| Curb weight | 1700 |
| Warranty of vehicle | 待讨论 |
| Manufacturer | Dongfeng Motor Co., Ltd |
| JunFeng Pure Electric JF-A09 （VAN） (20240409) | |||
|
图片picture |
 |
||
| 车型 Model | JF-A09 LHD OR RHD | ||
| 车型版本 Model version | 标准型 standard ES7 | ||
|
基础参数 Basic Parameters |
全长（mm）Overall Length (mm) | 5265 | |
| 全宽（mm）Overall Width (mm) | 1715 | ||
| 全高（mm）Overall Height (mm) | 2065 | ||
| 轴距（mm）Wheelbase (mm) | 3450 | ||
|
货箱内长度（mm） Inside length of container (mm) |
3205 | ||
|
货箱内宽度（mm） Inside width of container(mm) |
1550 | ||
|
货箱内高度（mm） Inside height of container(mm) |
1350 | ||
| 车身颜色Body color | 天际白White、星光银silver | ||
| 整备质量（kg）Curb Weight (kg) | 1700 | ||
| 整车满载重量（kg）Gross Weight (kg) | 3000 | ||

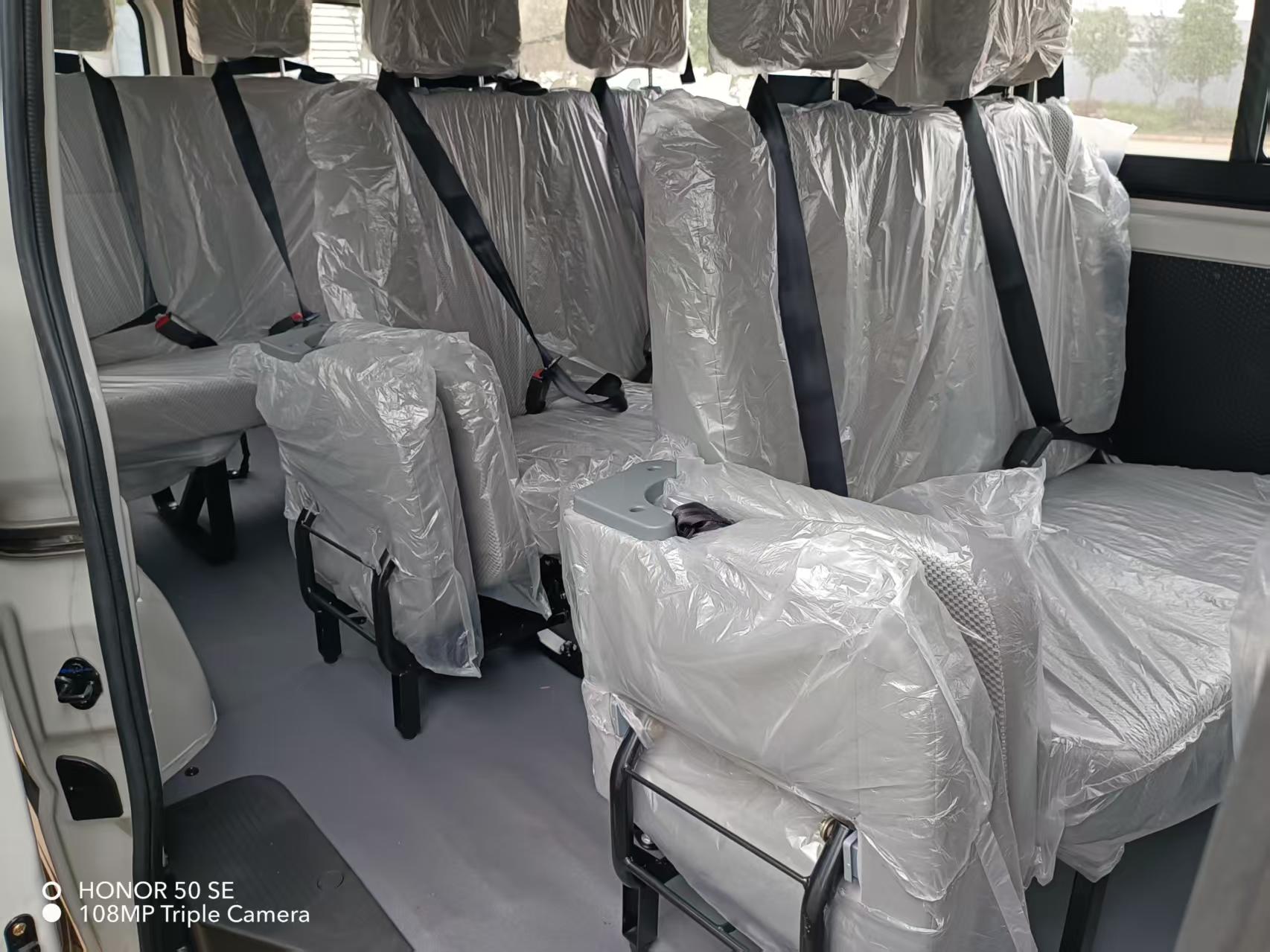

| 乘员数（人）Seats No. (person) | 14 | ||
|
性能参数 Performance Parameters |
电池（总成）总储电量（kwh） Total Battery Storage (kwh) |
53.58 | |
|
最高车速（km/h） Max. Speed(km/h) |
90 | ||
|
爬坡度要求（%） Slope Climbing Requirement |
≥20 | ||
|
电池系统能量密度（wh/kg） Energy Density of Battery System (wh/kg) |
≥145.59 | ||
|
纯电最高续航里程（km，工况法） Max. Range of Pure Electricity (km, VMAS) |
≥260 | ||
| 充电时间 Charging Time |
慢充≤12（SOC：20-100%） 快充≤1（SOC：20~80%） Slow Charge ≤12（SOC：20-100%） Fast Charge ≤1(SOC：20-80%) |
||
| 电池类型 Battery Type | 磷酸铁锂 LFP | ||
| 电机类型 Motor Type |
永磁同步 Permanent Magnet Synchronous |
||
|
一般配置 General configuration |
电池 Battery | 宁德时代CATL 53.58Kwh | |
| 驱动电机 Driving Motor | 武汉菱电 Wuhan Lingdian | ||
| 电机控制器 Motor Controller | 武汉菱电 Wuhan Lingdian | ||
| 整车控制器 Vehicle Control Unit | 武汉菱电 Wuhan Lingdian | ||
| D+C（风冷Air-cooling） | ● | ||
|
电池电加热系统 Battery Electric Heating System |
● | ||
|
车载监控系统 Vehicle Monitoring System |
× | ||
| 显示屏Display screen | ο | ||
| 倒车影像Reversing camera | ο | ||
| 倒车雷达 Reversing Radar | ο | ||
| 前空调 Front A/C | ● | ||
| 后空调 Rear A/C | × | ||
| EPS | ● | ||
| 主驾驶座安全气囊Driver's Seat Airbag | × | ||
| 副驾驶座安全气囊Passenger's Seat Airbag | × | ||
| 胎压监测Tire pressure monitoring | × | ||
| ABS防抱死制动系统 | ● | ||
| 制动力分配系统（EBD） | ● | ||
| 前门电动车窗 Front Door Power Window | ● | ||
| 前门手动摇窗 Front Door Manual Window | × | ||
|
遥控中控门锁（前、中门） Central Locking with Remote Control Key (Front, Rear Door) |
● | ||
|
遥控中控门锁（前、中、尾门） Central Locking with Remote Control Key (Front, Middle, Rear Door) |
× | ||
| 副驾辅助拉手Auxiliary Handle (piece) | ● | ||
|
副驾驶座椅调节（前后可调） Passenger's Seat Adjustment (Adjustable Forward and Rearward) |
● | ||
|
二排硬质地毯 The second rows of hard carpets |
● | ||
|
三排硬质地毯 The third rows of hard carpets |
● | ||
|
二排塑料门饰板 The second rows of Door Trim |
● | ||
|
后侧围塑料内饰板 Rear Side plastics Door Trim |
● | ||
|
尾门塑料内饰板 Tail side plastics Door Trim |
● | ||
| 车轮Wheel |
铝轮185R14LT Aluminum Wheel 185R14 LT |
× | |
|
钢轮195R14C 8PR Steel Wheel 195R14C 8PR |
● | ||
|
轮圈盖 Wheel Cover（NLM LOGO） |
× | ||
|
轮轴盖 Wheel Shaft Cover（NLM LOGO） |
× | ||
| 备胎Spare Tire |
钢轮195R14C 8PR Steel Wheel 195R14C 8PR |
● | |
|
专用配置 Special configuration |
专用车外观Special car appearance | 电动封闭式微面车Electric Closed Van | |
|
驾驶室后隔板 Rear clapboard of cab |
● | ||
|
驾驶室后隔板，配观察窗 Rear clapboard of cab with observation window |
× | ||
| 中侧窗盲窗Middle side window blind window | ● | ||
| 后侧窗盲窗Rear side window blind window | ● | ||
| 尾门盲窗The tail door window blind | ● | ||
| 车身反光贴纸Body reflective sticker | ● | ||
| 最大总质量喷涂Maximum total mass spray | ● | ||
| 高位制动灯Top digit brake light | ● | ||
| 货厢后踏板Rear compartment pedal | × | ||
|
其它差异配置说明 Other configuration differences |
灭火器（1kg）Fire extinguisher（1kg） | × | |
| 反光背心Reflective vest | ● | ||
| 蜗牛喇叭Fanfare horn | ● | ||
| 低速警告Under SP preALM | ● | ||
|
不可活动式安全带带扣（铁板） unMovable seat belt buckle (iron plate) |
● | ||
| 补胎液TYRE SEALER&INFLATOR | × | ||
| 后顶灯Rear dome light | ● | ||
| 前雾灯Front fog lamp | ο | ||
|
车身 body |
车身结构形式 Body structure form |
承载式车身 Load bearing body |
|
|
特殊要求 special requirements |

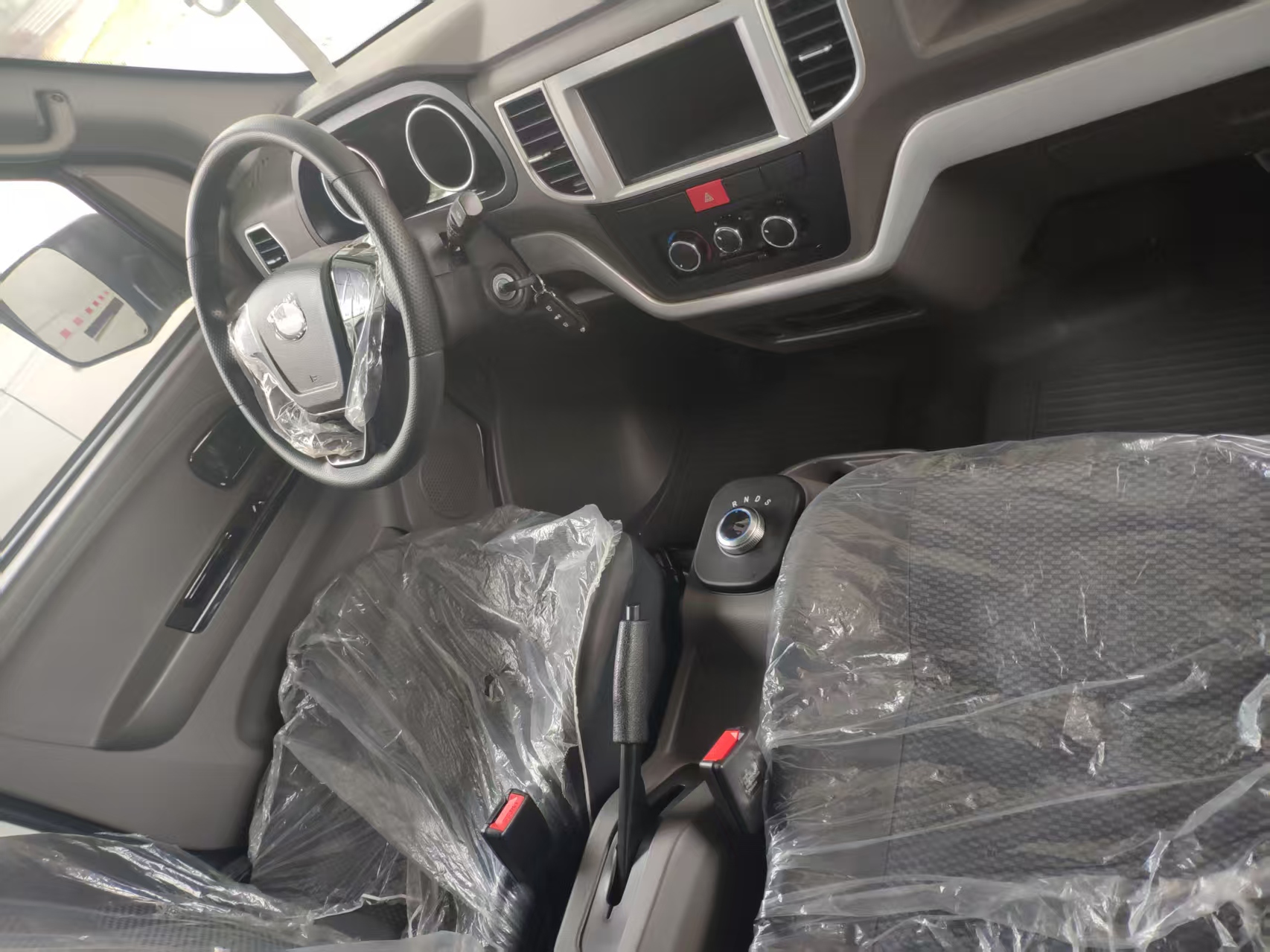

1. 客运版明窗+左侧侧滑门； 2.车顶承重加强，车顶左右两边各加装4块固定锚点，用于市场上加装车顶行李架；（如右图） 3.左右两侧车窗上方加装导水槽；（如右图） 4. 国标充电口，慢充功能至少满足6.6KW功率充电； 5.铝合金15寸轮毂； 6.主驾6.86寸仪表显示屏+中控10.1寸娱乐屏； 7.倒车雷达+倒车影像； 8.1KG车载灭火器； 9.随车工具须含千斤顶； 10前雾灯； 11.爬坡度≥25%、最高车速≥90KM/H； 12.后视镜上带转向指示灯；（如右图） 13. 最小离地间隙≥180mm（满载） |
1. Passenger version clear window+left side sliding door; 2. The roof load-bearing capacity is strengthened, and four fixed anchor points are installed on each side of the roof for the installation of roof luggage racks in the market; (As shown in the right figure) 3. Install water guide channels above the left and right car windows; (As shown in the right figure) 4. The national standard charging port has a slow charging function that meets at least 6.6KW power charging; 5. Aluminum alloy 15 inch wheels; 6. The driver's 6.86-inch instrument display screen and the central control 10.1-inch entertainment screen; 7. Reverse radar+reverse image; 8.1KG vehicle mounted fire extinguisher; 9. The accompanying tools must include a jack; 10 front fog lights; 11. Climbing slope ≥ 25%, maximum speed ≥ 90KM/H; 12. The rearview mirror is equipped with a turn indicator light; (As shown in the right figure) 13. Minimum ground clearance ≥ 180mm (full load) |
  |
|
备注：1、Mark部分为较上一版变更内容；2、“●”表示标配配置”，“○”表示选装配置，“×”表示无此配置。 Note: 1. The Mark part is changed from the previous version; 2. ● indicates standard configuration, ○ indicates optional configuration, and × indicates no configuration. |
|||
